DNP3

Distributed Network Protocol Version 3 (DNP3) is an open, reliable industrial communication protocol designed primarily for electric utilities, water treatment, oil and gas, and other critical infrastructure requiring reliable Supervisory Control and Data Acquisition (SCADA) over long-distance and often unreliable communication links.

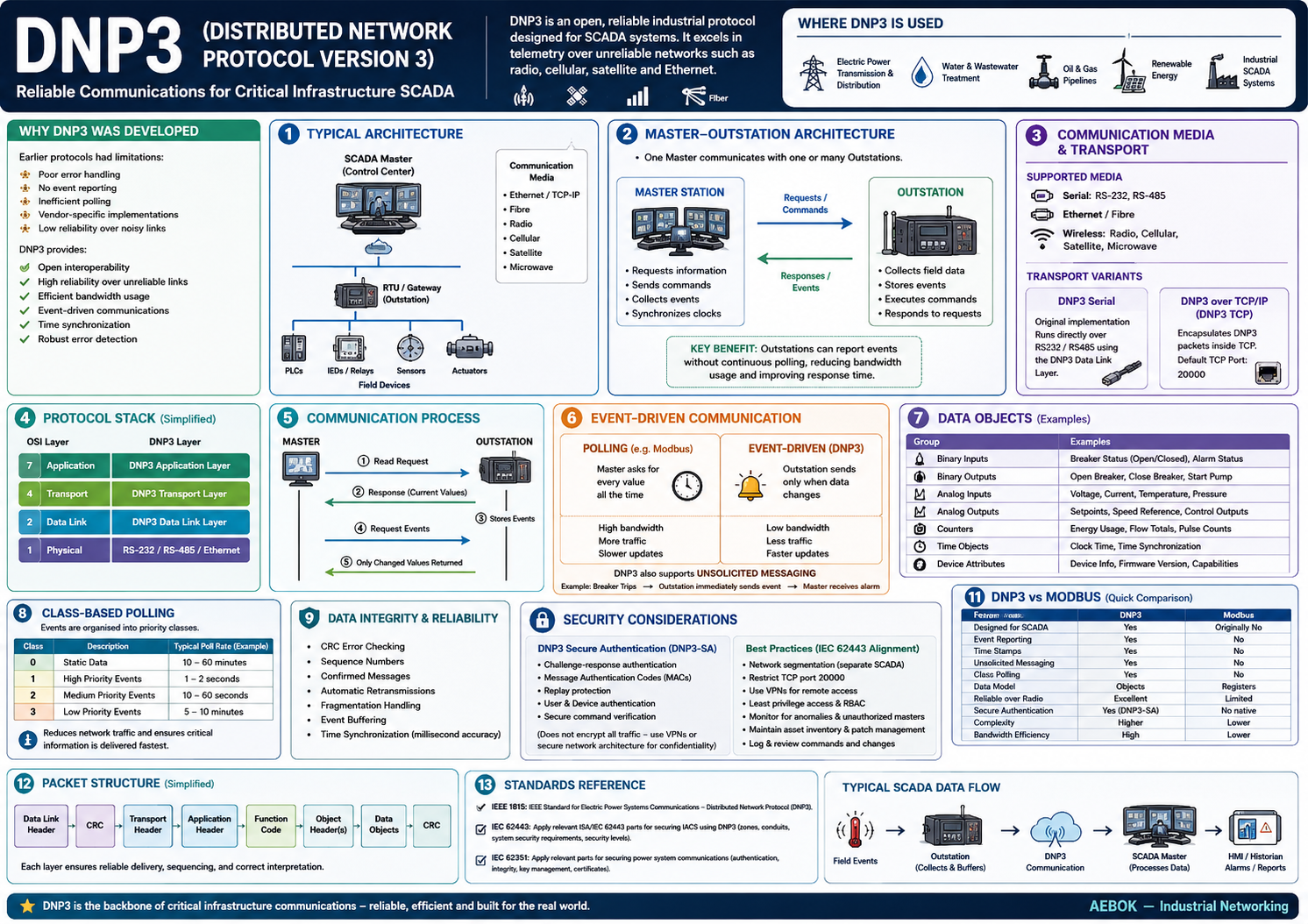

Overview

Distributed Network Protocol Version 3 (DNP3) is an open, reliable industrial communication protocol designed primarily for electric utilities, water treatment, oil & gas, and other critical infrastructure requiring reliable Supervisory Control and Data Acquisition (SCADA).

Unlike Modbus, DNP3 was specifically designed for telemetry over unreliable communication links, making it ideal for long-distance communications using:

Serial radio
Cellular
Satellite
Fibre
Ethernet
TCP/IP

DNP3 is widely deployed throughout electrical transmission and distribution networks and is one of the most common protocols used in modern SCADA systems.

Why DNP3 Was Developed

Earlier SCADA protocols suffered from limitations including:

Poor error handling
No event reporting
Inefficient polling
Vendor-specific implementations
Low reliability over noisy communication links

DNP3 was designed to provide:

Open interoperability
High reliability
Efficient bandwidth usage
Time synchronization
Event-driven communications
Robust error detection

Primary Applications

DNP3 is commonly used in:

Electrical substations
Distribution automation
Transmission systems
Water utilities
Wastewater treatment
Oil pipelines
Gas pipelines
Renewable energy farms
Industrial SCADA systems

Typical devices include:

Remote Terminal Units (RTUs)
Intelligent Electronic Devices (IEDs)
PLCs
SCADA Servers
Protection relays
Data concentrators

Typical Architecture

A typical DNP3 SCADA deployment connects a central master station to multiple remote outstations over a wide-area communication network.

SCADA Master
       │
 Ethernet / Radio / Cellular
       │
------------------------------
      RTU / Gateway
       │
------------------------------
 PLCs / IEDs / Relays
       │
 Sensors & Actuators

One master generally communicates with many remote stations.

Master-Outstation Architecture

DNP3 uses a master-outstation architecture. Instead of "Master" and "Slave", DNP3 terminology uses Master Station and Outstation.

Master Station
      ↓
Outstation

Master Station

The master:

Requests information
Sends commands
Collects events
Synchronizes clocks

Outstation

The outstation:

Collects field data
Stores events
Executes commands
Responds to requests

Unlike Modbus, outstations can report events without requiring continuous polling.

Communication Media

DNP3 supports a wide range of communication media:

Serial

RS-232
RS-485

Network

Ethernet
Fibre

Wireless

Radio
Cellular
Satellite
Microwave

Transport Variants

DNP3 Serial

The original implementation runs directly over RS-232 or RS-485 using the DNP3 Data Link Layer.

DNP3 over TCP/IP

Also known as DNP3 TCP, this variant encapsulates DNP3 packets inside TCP for integration into modern Ethernet SCADA systems.

Default TCP port: 20000

Protocol Stack

DNP3 loosely follows the OSI model.

OSI Layer	DNP3
Application	DNP3 Application Layer
Transport	DNP3 Transport Layer
Data Link	DNP3 Data Link
Physical	RS-232, RS-485, Ethernet

Communication Process

Typical polling sequence:

Master
  ↓
Read Request
  ↓
Outstation
  ↓
Returns Current Values
  ↓
Stores Events
  ↓
Master Requests Events
  ↓
Only Changed Values Returned

Event-Driven Communication

One of DNP3's biggest improvements over Modbus is event-driven reporting. Instead of sending all values repeatedly:

Temperature = 50°C
No change
  ↓
No transmission

Temperature = 60°C
  ↓
Only change transmitted

Advantages include:

Lower bandwidth
Faster updates
Less network traffic
Better performance over radio links

Unsolicited Messaging

DNP3 can send unsolicited responses. Instead of waiting for polling:

Breaker Trips
  ↓
RTU Immediately Sends Event
  ↓
Master Receives Alarm

This significantly improves alarm response times.

Time Synchronization

Every event may include:

Timestamp
Millisecond accuracy
Sequence information

The master periodically synchronizes clocks across the network. This is critical for:

Fault analysis
Sequence of events (SOE)
Disturbance recording

Data Objects

Unlike Modbus registers, DNP3 organizes information into objects.

Binary Inputs

Example: Breaker Status — Open / Closed

Analog Inputs

Examples: Voltage, Current, Temperature, Pressure

Counters

Examples: Energy Usage, Flow Totals

Control Outputs

Examples: Open Breaker, Close Breaker, Start Pump, Stop Pump

Object Groups

DNP3 data is organized into standard object groups:

Group	Description
Binary Inputs	Digital status
Binary Outputs	Commands
Analog Inputs	Measurements
Analog Outputs	Setpoints
Counters	Energy totals
Time Objects	Clock synchronization
Device Attributes	Device information

Static vs Event Data

Static Data

Static data represents the current value. Example: Pump Running.

Event Data

Event data records only changes. Example:

Stopped
  ↓
Started
  ↓
Stopped

The master can request:

Static data
Event data
Both

Class-Based Polling

DNP3 divides events into priority classes, allowing the master to poll different classes at different rates.

Class	Description
Class 0	Static data
Class 1	High priority events
Class 2	Medium priority events
Class 3	Low priority events

For example, the master may poll:

Class 1 — every second
Class 2 — every minute
Class 3 — every 10 minutes

This reduces network traffic while ensuring critical events are reported promptly.

Data Integrity

DNP3 includes robust mechanisms for reliable delivery over noisy links:

CRC checks
Sequence numbers
Confirmed messaging
Retransmissions
Fragment handling

Making it highly reliable over noisy communication links.

Advantages

Reliable communications
Efficient bandwidth usage
Time-stamped events
Supports unsolicited messaging
Designed for SCADA
Good over radio
Event buffering
Open standard
Widely supported

Limitations

Older versions lack security
Complex compared to Modbus
Larger packet overhead
Requires more configuration
Can expose critical infrastructure if unsecured

DNP3 Secure Authentication (DNP3-SA)

Traditional DNP3 had no authentication or encryption, making it vulnerable to:

Spoofing
Replay attacks
Unauthorized control
Command injection
Man-in-the-middle attacks

To address this, the protocol was enhanced with Secure Authentication (DNP3-SA).

Key security features include:

Challenge-response authentication
Message authentication codes (MACs)
Replay protection
User authentication
Device authentication
Secure command verification

DNP3-SA authenticates control commands before they are executed, helping prevent unauthorized operations. However, it does not encrypt all traffic; confidentiality typically requires additional measures such as VPNs or secure network architectures.

DNP3 and IEC 62351

The IEC 62351 series defines cybersecurity measures for power system communications, including DNP3.

Relevant protections include:

Secure authentication
Cryptographic message integrity
Key management
Certificate management
Role-based access control (RBAC)

Utilities commonly implement DNP3-SA together with IEC 62351 guidance to strengthen security across SCADA environments.

DNP3 within IEC 62443

DNP3 is frequently deployed within Industrial Automation and Control Systems (IACS) covered by IEC 62443. IEC 62443 does not replace DNP3; instead, it provides security requirements for systems using DNP3.

Key recommendations include:

Network Segmentation

Separate SCADA and corporate networks
Place outstations in secure industrial zones
Restrict communication through industrial firewalls

Secure Remote Access

Use VPNs with multi-factor authentication (MFA)
Avoid exposing TCP port 20000 directly to the Internet

Least Privilege

Restrict command privileges
Use role-based access
Limit engineering workstation permissions

Monitoring

Monitor for:

Unexpected master devices
Repeated authentication failures
Excessive polling rates
Unsolicited traffic anomalies
Unauthorized configuration changes

Asset Management

Maintain an inventory of:

RTUs
IEDs
Relays
SCADA servers
Gateways
Firmware versions
Security patches

Comparison with Modbus

Feature	DNP3	Modbus
Designed for SCADA	Yes	Originally no
Event reporting	Yes	No
Time stamps	Yes	No
Unsolicited messaging	Yes	No
Class polling	Yes	No
Data objects	Yes	Registers only
Reliable over radio	Excellent	Limited
Secure Authentication	Yes (DNP3-SA)	No native equivalent
Complexity	Higher	Lower
Bandwidth efficiency	High	Lower

Packet Structure

A simplified view of the DNP3 packet structure shows how each layer contributes to reliable delivery, sequencing, and application-level interpretation.

+------------------------------------------------------+
| Data Link Header                                     |
+------------------------------------------------------+
| CRC                                                   |
+------------------------------------------------------+
| Transport Header                                      |
+------------------------------------------------------+
| Application Header                                    |
+------------------------------------------------------+
| Function Code                                         |
+------------------------------------------------------+
| Object Header(s)                                      |
+------------------------------------------------------+
| Data Objects                                          |
+------------------------------------------------------+
| CRC                                                   |
+------------------------------------------------------+

SCADA Data Flow

SCADA Master
      │
Read Class 1 Events
      │
      ▼
Remote RTU
      │
Changed Analog Values
Binary Alarms
Counter Updates
      │
      ▼
Master Updates HMI
Historian Stores Events
Operator Receives Alarm

Best Practices

Implement DNP3 Secure Authentication where supported.
Follow IEC 62443 zone and conduit principles to isolate DNP3 networks.
Apply IEC 62351 guidance for authentication and key management.
Use industrial firewalls to restrict TCP port 20000.
Encrypt remote access using VPNs or secure tunnels.
Synchronize device clocks using a trusted time source.
Disable unused objects and functions.
Monitor for abnormal polling behaviour and unexpected masters.
Keep RTUs, relays, and gateways patched with current firmware.
Record and review all control commands and configuration changes.

Standards Reference

DNP3 Protocol: IEEE 1815 – IEEE Standard for Electric Power Systems Communications – Distributed Network Protocol (DNP3).
IEC 62443: Apply the requirements of the relevant parts of the ISA/IEC 62443 series (for example, secure zones and conduits, system security requirements, and security levels) when deploying DNP3 within an IACS.
IEC 62351: Apply the relevant parts of the IEC 62351 series for securing DNP3 communications in power system environments, including secure authentication, key management, and message integrity.
