IEC 62443 Models

Overview

IEC 62443 uses a collection of interconnected models to describe, design and secure Industrial Automation and Control Systems (IACS). Rather than viewing cybersecurity as a collection of independent technical controls, these models provide different perspectives of the same system.

Each model answers a different question and progressively builds towards a secure, well-designed industrial architecture.

• Reference Model — What does an industrial control system look like?
• Asset Model — What assets exist?
• Reference Architecture Model — How are those assets connected?
• Zone & Conduit Model — How should the assets be secured?

Together these models support cybersecurity risk assessments, defence-in-depth, network segmentation, system design and lifecycle management.

Reference: ISA/IEC 62443-1-1, Clause 6.6

Learning Objectives

• Understand the purpose of each IEC 62443 model.
• Explain how the models build upon one another.
• Understand the relationship between Reference, Asset, Architecture and Zone Models.
• Understand the role of Conduits in securing communications.
• Recognise how the models support defence-in-depth.

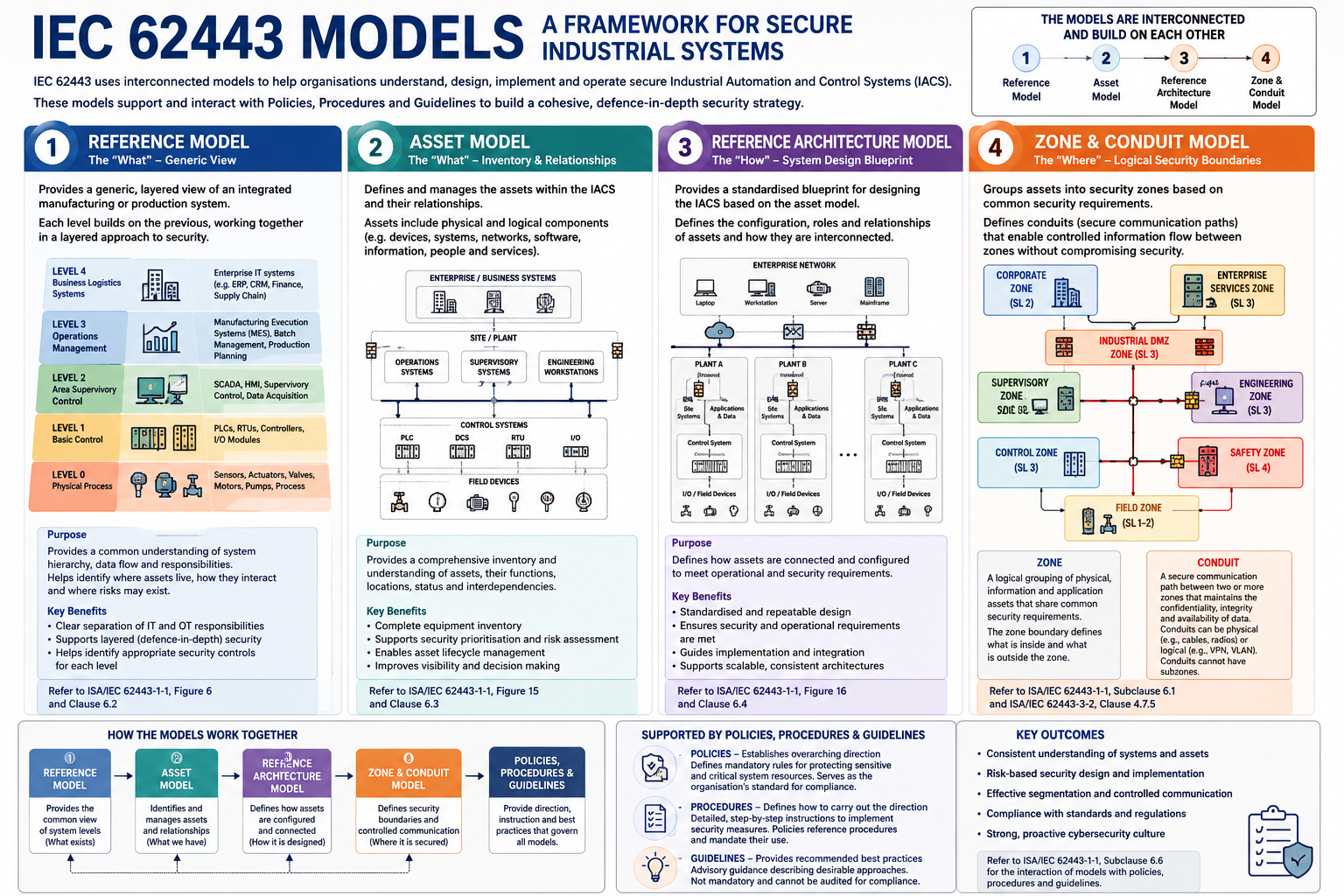

Summary Infographic

1. Reference Model

The Reference Model provides a generic, technology-independent view of an Industrial Automation and Control System (IACS). It represents a manufacturing or production system as a hierarchy of logical levels.

The ISA99 Reference Model allows engineers to understand how industrial systems are structured, where responsibilities exist, and how information flows between Operational Technology (OT) and Information Technology (IT).

ISA99 Levels

Reference: ISA/IEC 62443-1-1, Clause 6.2

2. Asset Model

The Asset Model identifies every cybersecurity-relevant asset within an IACS and defines the relationships between them.

Assets include both physical and logical components such as controllers, servers, HMIs, engineering workstations, field devices, communications equipment and software applications.

The Asset Model supports:

• Asset inventories
• Lifecycle management
• Risk assessments
• Maintenance planning
• Patch management
• Vulnerability management

By understanding where assets are located, what they do and how they interact, organisations gain visibility of their operational environment.

Reference: ISA/IEC 62443-1-1, Figure 15

3. Reference Architecture Model

The Reference Architecture Model builds upon the Asset Model by defining how assets are organised and interconnected.

Rather than simply identifying assets, the architecture illustrates:

• Network topology
• Communication paths
• Hardware and software roles
• System interfaces
• Security boundaries
• Data flows

It becomes the blueprint used when designing or assessing an Industrial Automation and Control System.

Where practical, security zones should align with physical plant boundaries, simplifying both administration and cybersecurity.

Reference: ISA/IEC 62443-1-1, Clause 6.4 and Figure 16

4. Zone & Conduit Model

The Zone and Conduit Model applies cybersecurity to the architecture by grouping assets that share common security requirements.

Rather than protecting every device individually, IEC 62443 recommends protecting logical groups of assets called Security Zones.

Security Zones

• Contain assets with similar security requirements.
• Have clearly defined trust boundaries.
• Apply security policies consistently.
• Reduce attack surfaces through segmentation.
• Support defence-in-depth.

Conduits

Communication between security zones occurs through Conduits.

Conduits provide controlled communication paths while maintaining the confidentiality, integrity and availability of communications.

Conduits may be:

• Physical (cabling, fibre, radio, WAN)
• Logical (VPNs, VLANs, SDN)

Typical conduit security mechanisms include:

• Firewalls
• VPNs
• Authentication
• Encryption
• Deep Packet Inspection
• Network Monitoring
• Access Control

Zone and Conduit Models provide the foundation for network segmentation, controlled communications and secure industrial architectures.

Reference: ISA/IEC 62443-1-1, Clause 6.5.1
Reference: ISA/IEC 62443-3-2, Clause 4.7.5

How the Models Work Together

1. Reference Model — Understand the industrial system.
2. Asset Model — Identify the assets.
3. Reference Architecture — Define how assets connect.
4. Zone & Conduit Model — Secure communications and segment the network.
5. Policies, Procedures & Guidelines govern every stage.

Each model builds upon the previous one, creating a structured approach to designing, operating and maintaining secure Industrial Automation and Control Systems.

Reference: ISA/IEC 62443-1-1, Clause 6.6

Key Takeaways

• IEC 62443 uses four interconnected models to describe and secure Industrial Automation and Control Systems.
• The Reference Model provides a common understanding of industrial system structure.
• The Asset Model identifies all cybersecurity-relevant assets and their relationships.
• The Reference Architecture Model defines how assets are organised and interconnected.
• The Zone & Conduit Model groups assets with similar security requirements and secures communications between them.
• Together, these models support defence-in-depth, network segmentation and cybersecurity throughout the system lifecycle.
